船岸連接電纜

更新:2021/11/11 16:53:47??????點擊:
  • 品牌:???紅旗電纜
  • 型號:???ADEF(CADEFR)/DA/SA ADEXF(CADEXFR)/DA/SA ADEU(CADEUR)/DA/SA ADEXU(CADEXUR)/DA/SA
  • 在線訂購
產品介紹

SHIP-TO-SHORE CONNECTION CABLES

                                             Application

適用于船舶停港口時接入岸上電源并向船          It is applicable to the power connection line connected

舶供電的電源連接線。                                          to the shore power supply and supplying power to the ship

 取得CCS工廠(型式)認可證書                                                         when the ship stops at the port.

標準

Standard

IEC60092-350

IEC60092-350

IEC60092-353

IEC60092-353

IEC PAS 80005-3

IEC PAS 80005-3

T/CAS 429

T/CAS 429

型號Type

名稱Description

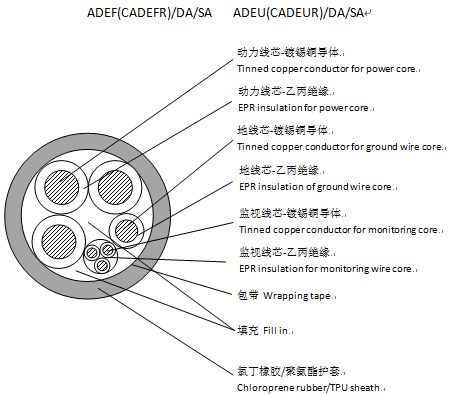

ADEF(CADEFR)/DA/SA

乙丙絕緣氯丁橡膠護套船岸連接電纜,DA/SA

EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

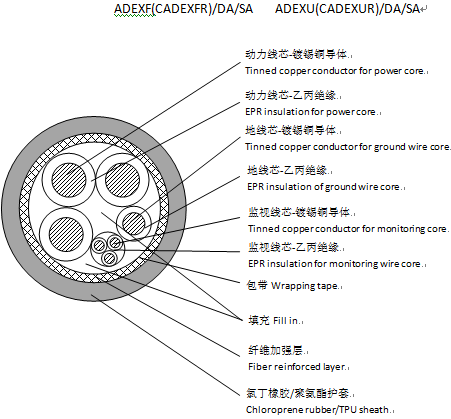

ADEXF(CADEXFR)/DA/SA

乙丙絕緣纖維編織加強層氯丁橡膠護套船岸連接電纜,DA/SA

EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

ADEU(CADEUR)/DA/SA

乙丙絕緣聚氨脂護套船岸連接電纜,DA/SA

EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA

ADEXU(CADEXUR)/DA/SA

乙丙絕緣纖維編織加強層聚氨脂護套船岸連接電纜,DA/SA

EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA


船岸連接電纜              電壓等級:0.6/1kV                          90

芯數×動力線芯

標稱截面

No.Of core×nominal cross sectional area of power core (mm2)

芯數×地線芯標

稱截面

No.Of core×nominal cross sectional area of ground wire core(mm2)

芯數×監視線芯

標稱截面

No.Of core×nominal cross sectional area of monitoring core (mm2)

電纜最大外徑Max.acceptable cable overall diameter
(mm)

參考重量        Reference weight
(kg/km)

U

F

U

F

1×70

-

-

20.9

22.8

1066

1170

1×95

-

23.2

25.6

1406

1552

1×120

-

25.4

28.1

1712

1887

1×150

-

28.1

30.7

2090

2282

1×185

-

30.8

33.7

2523

2756

1×240

-

34.7

38.0

3309

3617

3×25

1×16

                               2×2×1.5            2×2×2.5                     1×2×1.5

1×2×2.5

3~9×1.5

3~9×2.5

30.6

33.8

1853

2078

3×35

1×35

34.6

37.9

2563

2863

3×50

1×50

40.6

44.4

3643

4048

3×70

1×50

44.8

49.1

4462

4962

3×95

1×50

49.2

54.0

5663

6280

3×120

1×70

54.6

59.9

6994

7741

3×150

1×95

60.8

66.6

8714

9620

3×185

1×95

65.6

72.1

10235

11352

3×240

1×120

74.2

81.4

13382

14789

產品主要性能

Main performance

具有耐阻燃、日光老化、耐磨、抗撕、耐鹽霧、耐循環彎曲(滿足IEC80005.1規定的5000次卷繞試驗)及優良的電性能(耐壓測試3.5KV/5min)。

flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min).

產品使用特性

Product features

額定電壓 U0/U 0.6/1KV  ; 最低工作溫度(靜態)為-40℃;導體允許長期最高工作溫度為90℃;最大短路時間為5S時導體最高工作溫度不超過250℃;電纜最小彎曲半徑(靜態)為電纜外徑D6倍。

Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40; The maximum allowable long-term operating temperature of the conductor is 90; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250; The minimum bending radius (static) of the cable is 6 times of the cable diameter D.
